Sample - Steam Drum

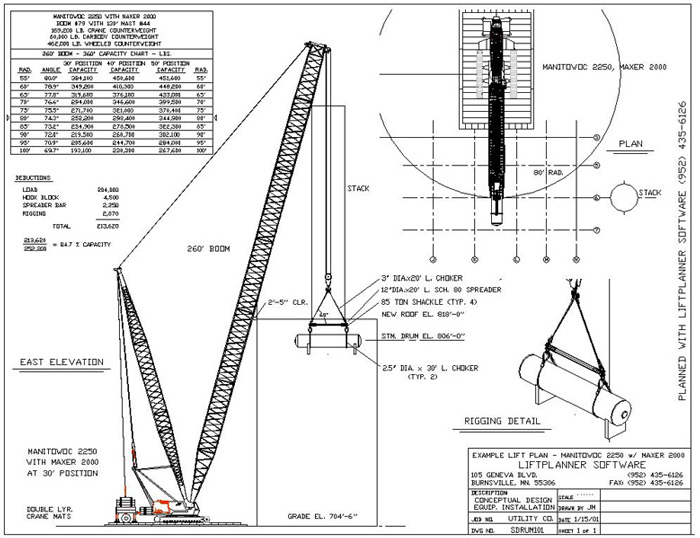

   Plan, Elevation and Details from the 3D model

A Manitowoc 2250 with Maxer 2000 picks a Steam Drum over a 113'-6" high wall at an 80' radius. Please note the adjustable pipe spreader bar and basketed chokers in the Rigging Detail.
