LiftPlanner has all of the tools that you need:

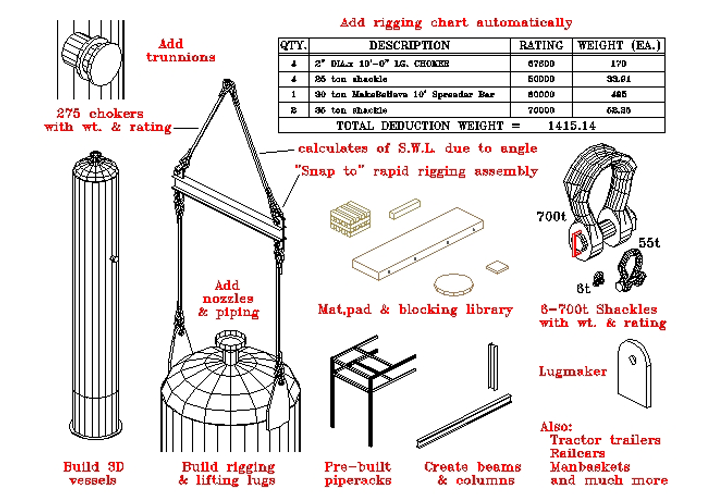

LiftPlanner includes a comprehensive library of rigging, piping, steel, and job-site components designed for engineered lift planning. Every item includes weight, rating, and descriptive data so planners can build accurate site conditions and rigging assemblies.
| Rigging Library |
Automatic Deduction Calculations |
• 275 Chokers
• 6-700 Ton Shackles
• Spreader Bars
• Slings
• Manbaskets
• Custom Rigging Assemblies
|
Liftplanner's sum deduction engine automatically sums rigging weights |
Lifting Lug Creator
|
| Create custom lifting lugs for fabricated equipment with non-standard attachment points |
| Steel Tools |
|
• Beams
•
Columns
•
Piperacks
•
Structural elements
•
Mat pads and blocking |
Piping & Vessel Tools |
• Build vessels, tanks & nozzles
•
Add piping runs and supports
•
Model equip loads with CG’s |
Job-Site Elements
•
Trailers
•
Railcars
•
Platforms
•
Ground mats
•
Import Google Images
•
Import plot plans
•
Import Point Clouds |
|
This library is one of LiftPlanner’s strongest differentiators — it allows planners to build complete lift environments without leaving the software.
RIGGING EXAMPLE
The two LiftPlanner rigging details accurately predict the photograph of the lift shown on the right.

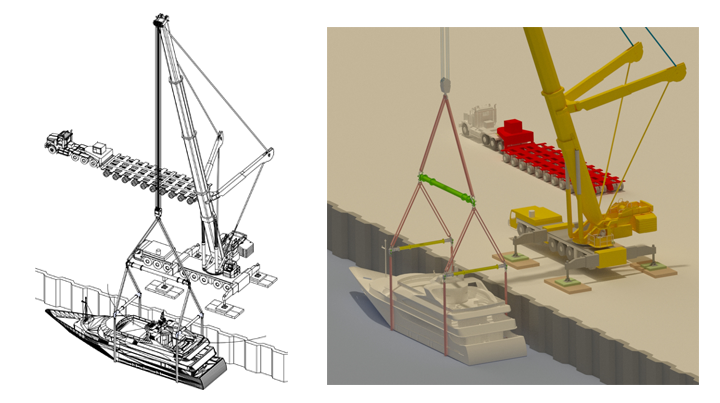

The Liebherr LTM1500-8.1 with Superlift is shown ready to lift this boat to an awaiting platform trailer. LiftPlanner Software can depict a lift with several choices of appearances - CAD style linework on the left and a realistic rendering on the right. A 34' long 400-250 Modulift spreader bar is on top with a pair of 22' long 110H Modulift spreader bars beneath. Endless Polyester slings and U-shaped baskets of the proper size are made with sling creator programs. Many Modulift spreaders are included in the
LiftPlanner Rigging library with built-in data properties that can be extracted
by the "Sum Deductions" program.

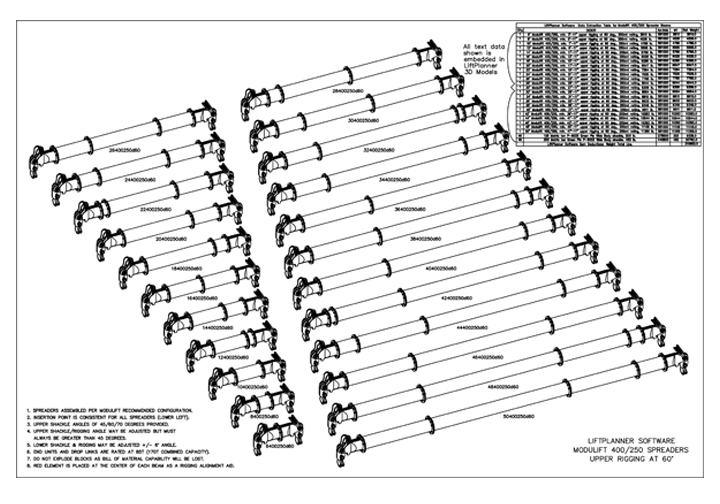

See following example for 400-250 Modulift spreader bars with 60 degree upper rigging:
LiftPlanner Data Sheets are included for 400-250 Modulift spreader
bars at 70 / 60 / 45 degree inclinations.
|
